Automatic Driveway Barrier Gates / Car Parking Boom Barrier Gate IP44 Grade

Name: Automatic Driveway Barrier Gates Car Parking Boom Barrier Gate IP44 Grade
Brand: WONSUN
Price: 1 USD

Brand Name : WONSUN

Model Number : WSTP-115B

Certification : CE/SGS

Place of Origin : China

MOQ : 1PC

Price : Negotiable

Payment Terms : T/T,Western Union,Money Gram, Trade Assurance,Paypal etc.,

Supply Ability : 1000 Sets/Month

Delivery Time : 3-7 working days after received your payment

Packaging Details : Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Product Name : IP44 Grade Car Park Boom Automatic Barrier Driveway Barrier Gates

Color : Grey as standard,customized

Material : 2.0mm cold roll steel sheet

Opeartion Time : 0.6s,1s,1.8s,3s,6s

Arm Type : stright arm,fence arm,folding arm

Rating Voltage : AC110V/220±10%，50/60HZ

Gross Weight : 55KGS

Protection Grade : IP44

Size : 320*280*920mm

Keywords : Driveway barrier gates

Contact Now

Automatic Driveway Barrier Gates / Car Parking Boom Barrier Gate IP44 Grade

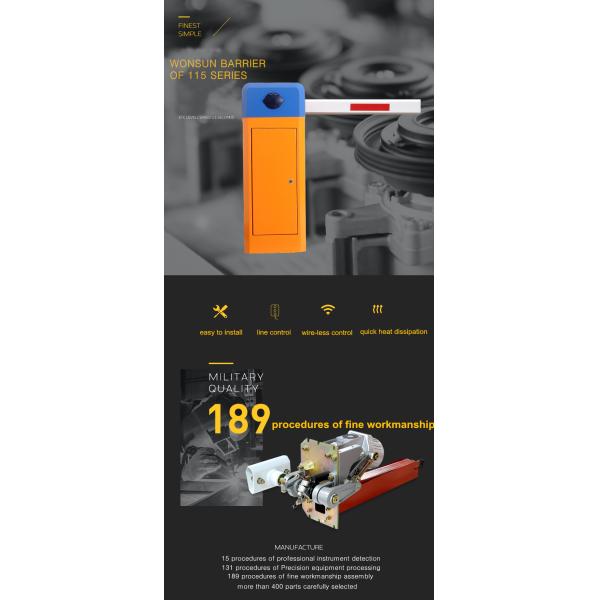

Barrier Gate
Torque motor,steady,low noise,free maintenance
100% duty cycle,heavy duty
Automatic fault-detect
5 million MTBF

Intelligent Automatic Barrier Gate provides a secure and convenient solution of stopping unauthorized vehicle or giving access to authorized vehicle at highway,shopping center, exhibition center, hospitals, airports etc.

   Quick Details

Name	Automatic Barrier Gate	Application	Parking System
Speed	0.6/1/1.8/3/6 second	Feature	Manual release
Rated Power	80W	Certificate	CE, ISO, SGS
Net Weight	60KG	Voltage	AC220V, AC110V

Automatic Driveway Barrier Gates / Car Parking Boom Barrier Gate IP44 Grade

Technical Specifications

Product Name	IP44 Grade Car Park Boom Automatic Barrier Driveway Barrier Gates
Model	WSTP-115B
Size	350280920mm
Rating Voltage	AC 220/110V ±10%, 50/60Hz
Color	yellow,orange,blue,red,black,customized
Motor Power	80w
Speed Option	0.6s,1s1.8s; 3s; 6s
Material	2.0mm galvanized plate or cold roll plate with epoxy paint
Weight	55 KG
Operation Testing	More than 5 million times
Arm Option	Straight arm, 1-6 m for option, 4580mm or 45100mm Folding arm, 1-4.5 m for option, 90 degree or 180 degree Fence arm, 1-5m for option, two fence or three fence
Working Temperature	-45°C — +75°C
Remote Control Distance	Less than 30m
Application	Suitable for Highway, toll station, open-parking ground, underground parking, community,shopping center

What's the features and functions of barrier gate?

--Manual release available if meet power failure

--Machine core with compression spring, effectively avoids the accidents caused by spring breaking

--Die-casting aluminum alloy motor, precision and good for thermal radiating

--Motor cooling fan, solving the problem of heat-protection

--Double safety limit switches (photoelectricity limit switch/motor memory sensor)

--Reversing on obstacle

--Traffic light interface

--Wire control (switch signal) / Remote control

--RS485 communication module (optional)

--Support the Infrared Photocell for anti-bumping function (optional)

--Support the Loop Detector for auto-closing & anti-bumping (optional)

Packing&Shiping

use strong carton case with air bubble filled inside to protect products and save your cost.

shipped in 3-7days after payment

Automatic Driveway Barrier Gates / Car Parking Boom Barrier Gate IP44 Grade

Packing List

Items	quantity	items	quantity
Paint-coated case	1	motor	1
Transmission	1	limit switch	1
Barrier arm	1	capacitor	1
Spring	1	circuit board	1
Remote control device	2	console control device	1
Installation kit	1
